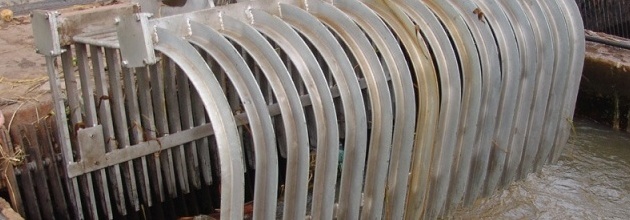

MONORAIL GRAB:

The grab constitutes a major component of our monorail-type weed screen cleaning systems installed at open-source water intakes of some irrigation pumping stations in Egypt. It comprises a fixed and a movable jaw. The fork-like fixed jaw is equipped with equidistant straight tines. The movable jaw has elbow-shaped tines. Two hydraulic cylinders open and close the movable jaw. The grab remains open as the carrying trolley approaches the target water intake. A winch lowers the grab at the right location where the fixed jaw tines become positively engaged between screen bars to remove accumulating weeds and debris as the grab moves downwards with its jaws open. The movable jaw is closed at the lower end of the grab stroke so as to collect weeds. The grab is then elevated and the trolley moves towards the discharge area where the grab is opened to discharge collected weeds.

Fixed Jaw:

The fixed jaw straight tines clean screen bars as they move from top to bottom.

• Number of Tines 31
• Total Jaw Width 1818 mm
• Total Tine Height 810 mm
• Effective Tine Height 720 mm
• Tine Spacing 60 mm
• Tine Thickness 18.5 mm
• Tine Width 60 mm

Movable Jaw:

The movable jaw elbow-shaped tines help accommodate collected weeds. Made of T-Shaped steel sections and stiffened by a transverse steel strip, jaw strength is guaranteed.

• Number of Tines 16
• Total Jaw Width 1866 mm

Hydraulic Cylinders:

Two hydraulic cylinders are used to reliably open and close the grab movable jaw. A double-hose-mechanism working in parallel with the main winch mechanism connects the cylinders with the trolley hydro-power pack.

Main Grab Specifications:

All grab components are made from hot-galvanized sand-blast steel. Appropriate grab dimensions allow it to accommodate the required weed capacity and clean each water intake in two drops. Grab orientation is adjustable to avoid friction of tines with screen bars. Possible grab impact with the trolley is damped through teflon suspension.

• Total Grab Width 1914 mm
• Total Grab Height 1248 mm
• Effective Grab Height 720 mm
• Maximum Jaw Spacing 828 mm
• Nominal Volume Capacity 0.5 m3
• Nominal Load Carrying Capacity 500 KG
